| 型號 | 描述 | 頻率范圍 |
駐波 |
規格書 |
|

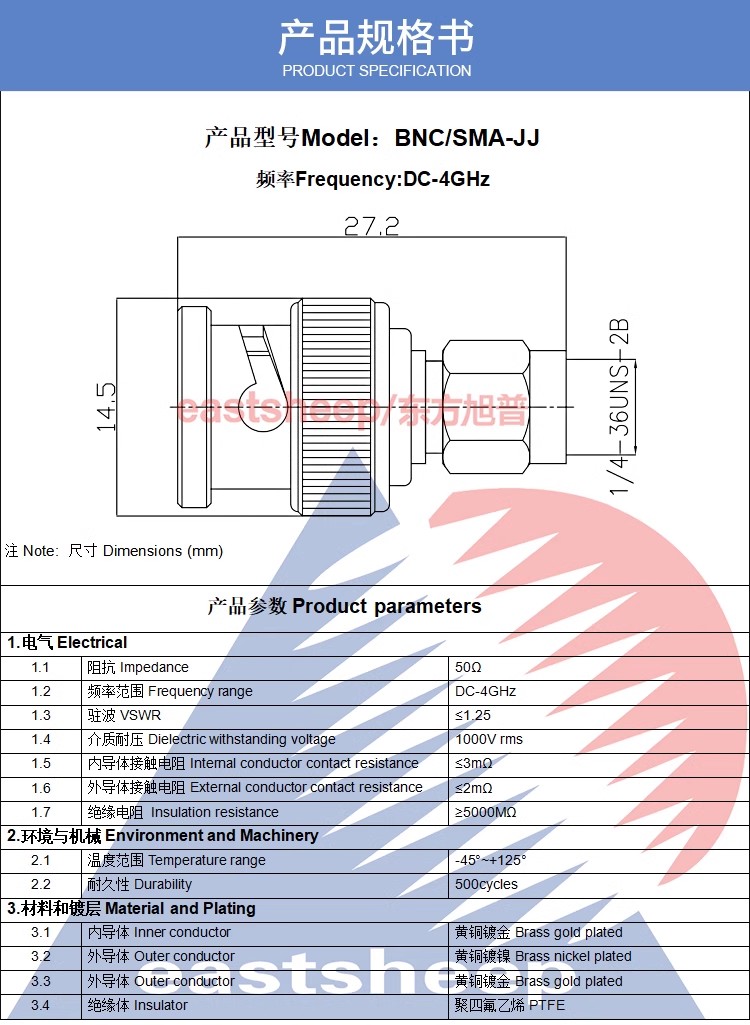

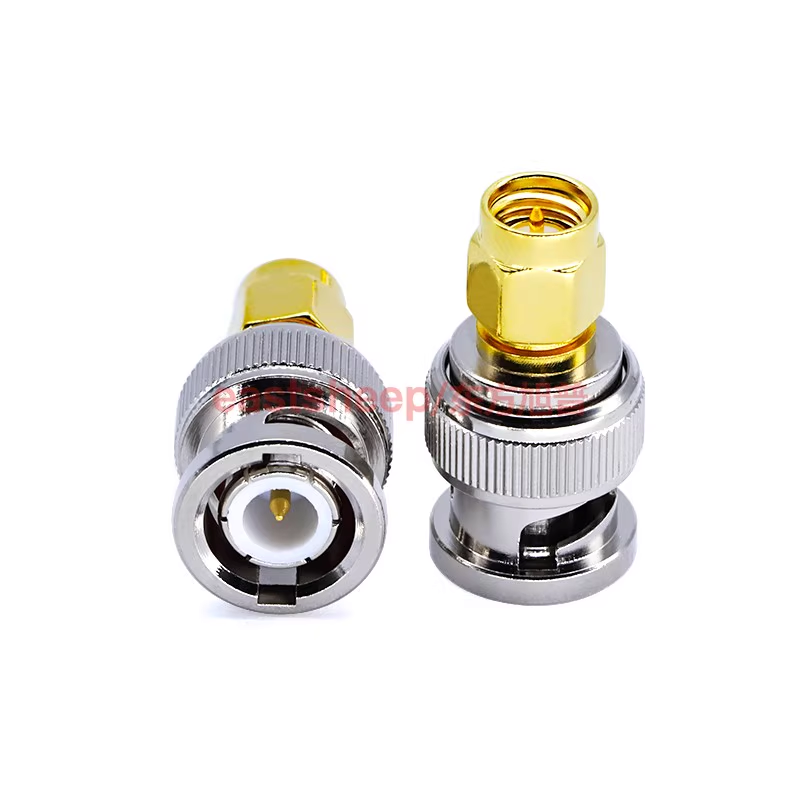

BNC/SMA-JJ |
BNC公—SMA公 |
DC-4G |
≤1.25 |
下載參數 |
|
BNC/SMA-JJG |
BNC公—SMA公 (不銹鋼) |
DC-4G |
≤1.25 |
下載參數 |
|
BNC/SMA-JJG-1 |
BNC公—SMA公 (不銹鋼) |
DC-18G |
≤1.2 |
下載參數 |
|

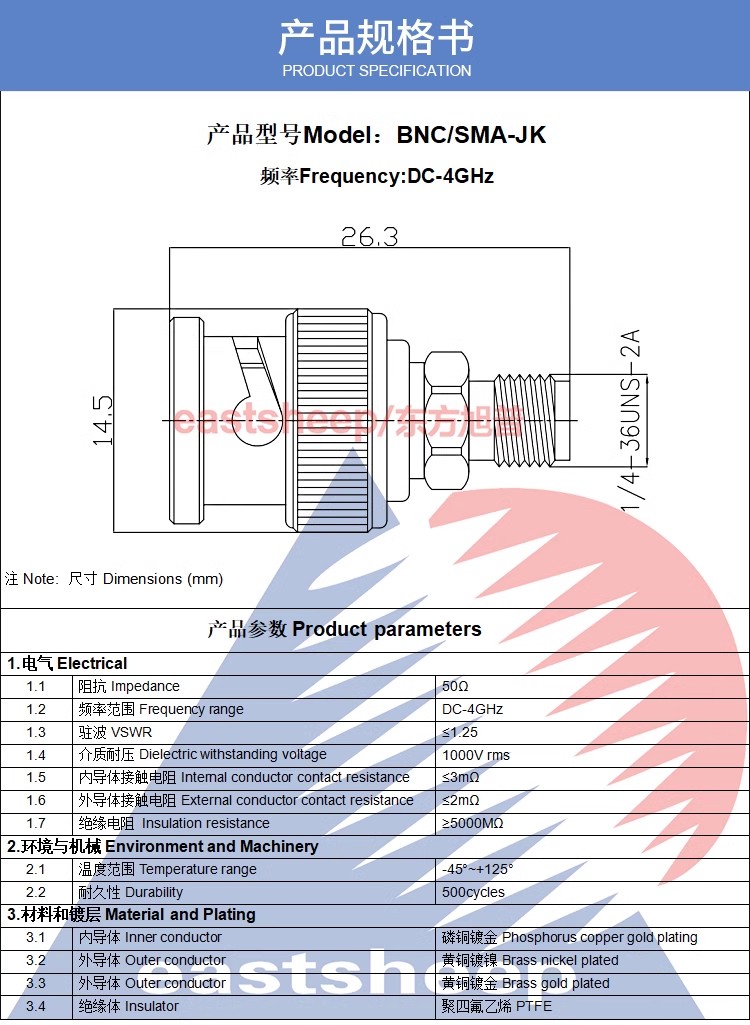

BNC/SMA-JK |
BNC公—SMA母 |
DC-4G |
≤1.25 |
下載參數 |
|

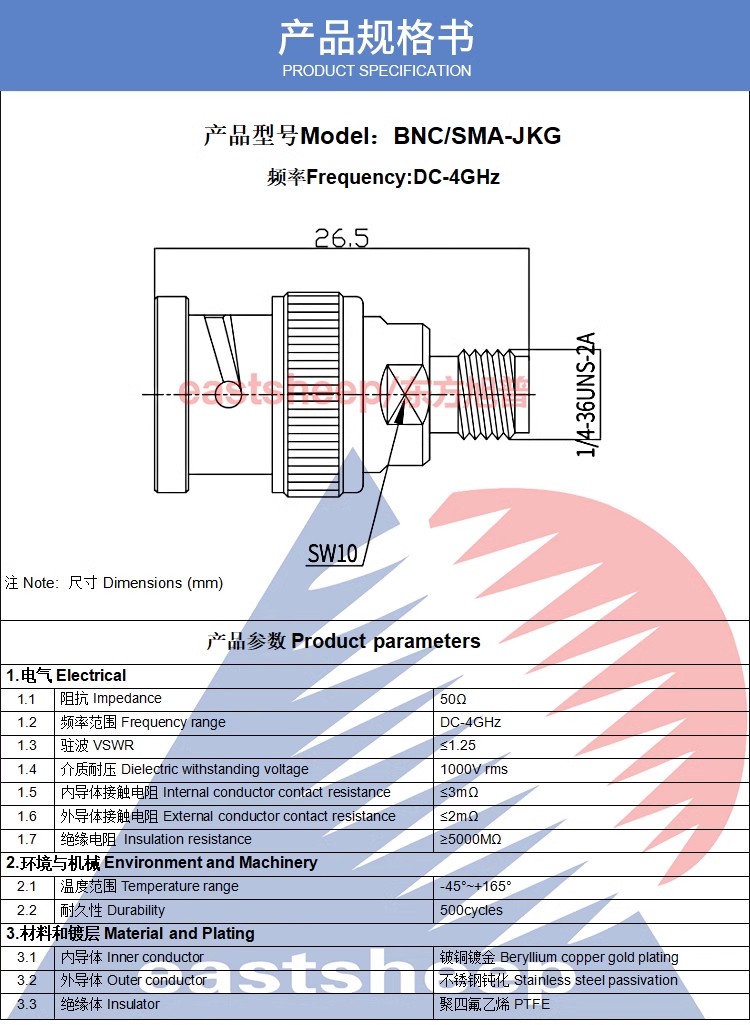

BNC/SMA-JKG |
BNC公—SMA母 (不銹鋼) |
DC-4G |
≤1.25 |
下載參數 |
|
BNC/SMA-JKG-1 |
BNC公—SMA母 (不銹鋼) |
DC-18G |
≤1.2 |
下載參數 |
|

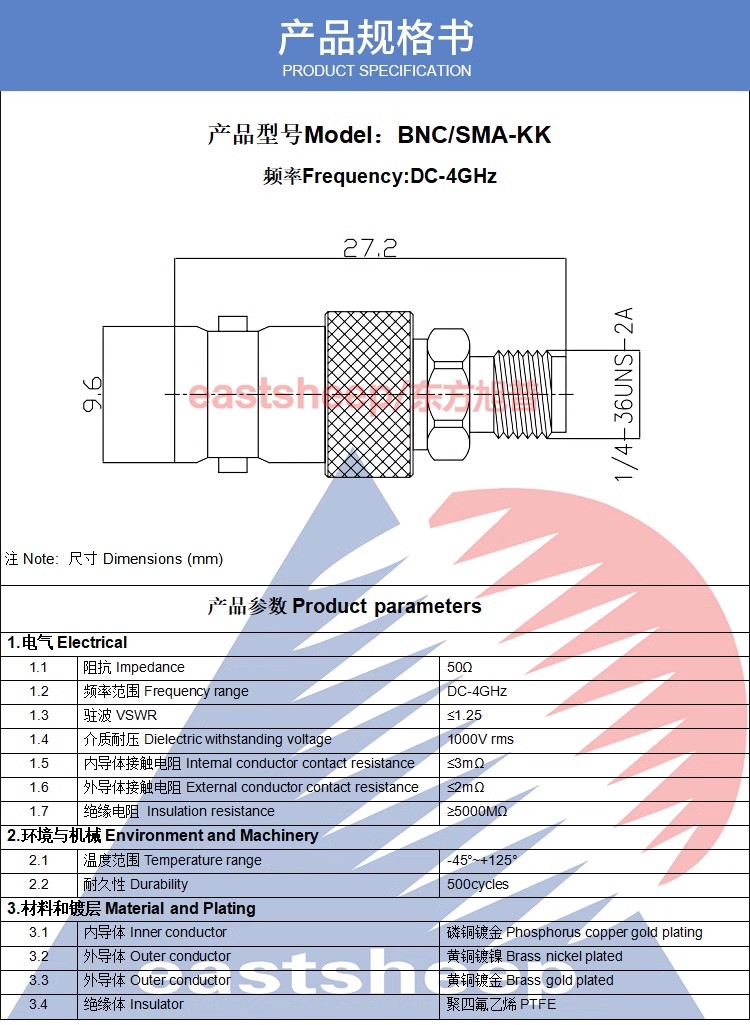

BNC/SMA-KK |
BNC母—SMA母 | DC-4G | ≤1.25 |
下載參數 |
|

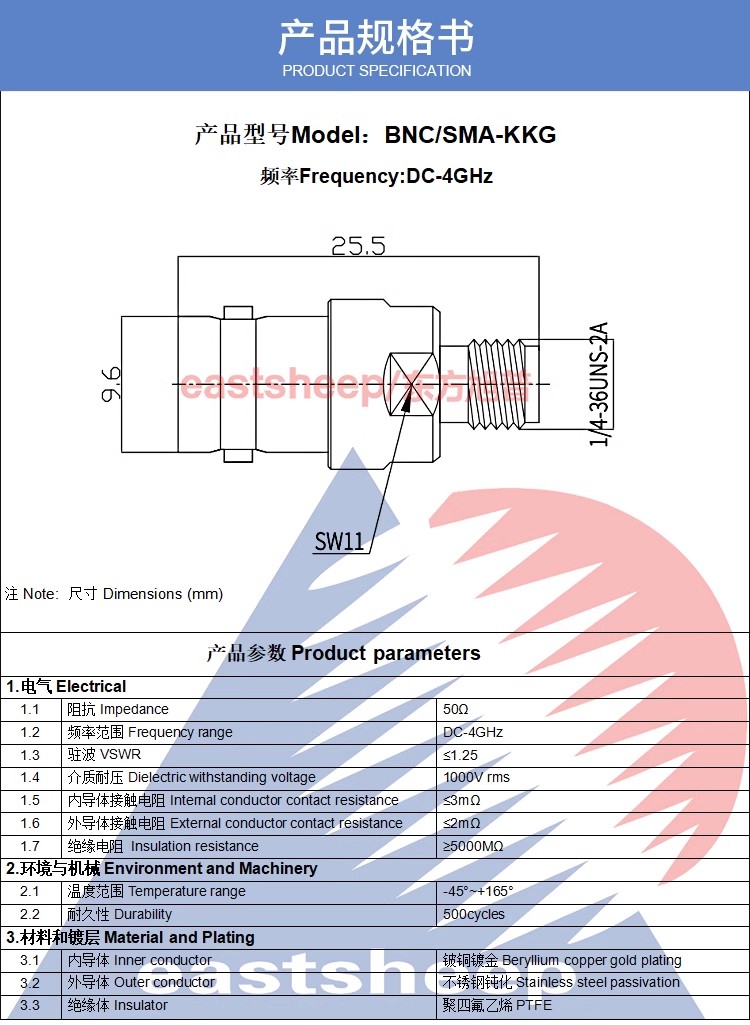

BNC/SMA-KKG |
BNC母—SMA母 (不銹鋼) |
DC-4G |
≤1.25 |
下載參數 |
|

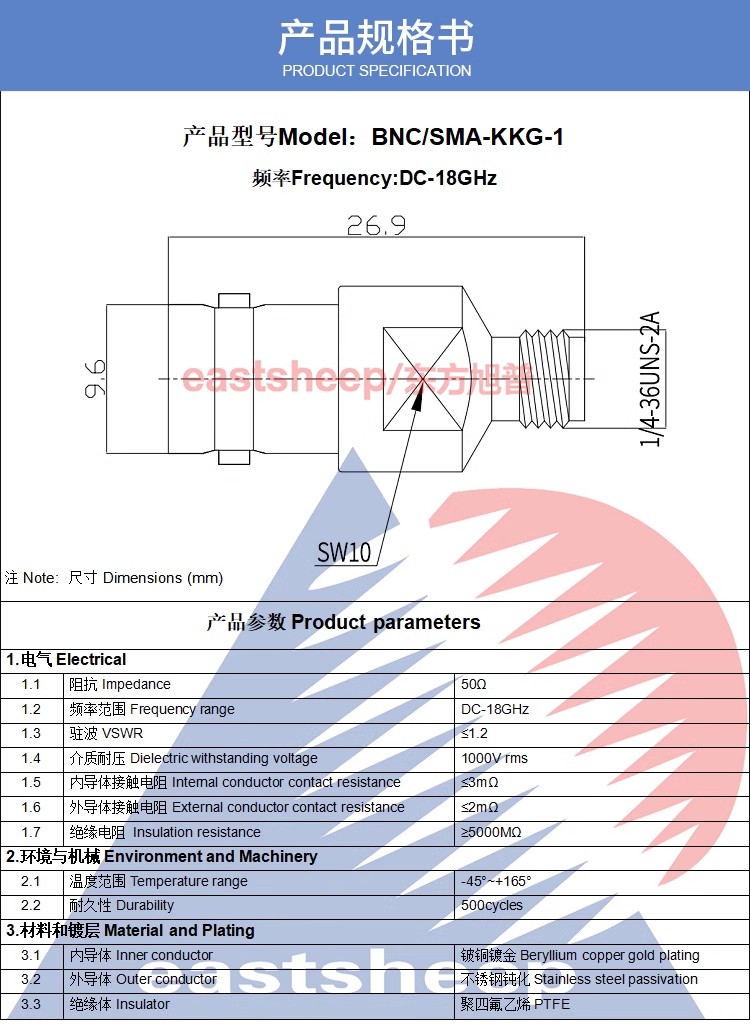

BNC/SMA-KKG-1 |
BNC母—SMA母 (不銹鋼) |
DC-18G |
≤1.2 |
下載參數 |
|

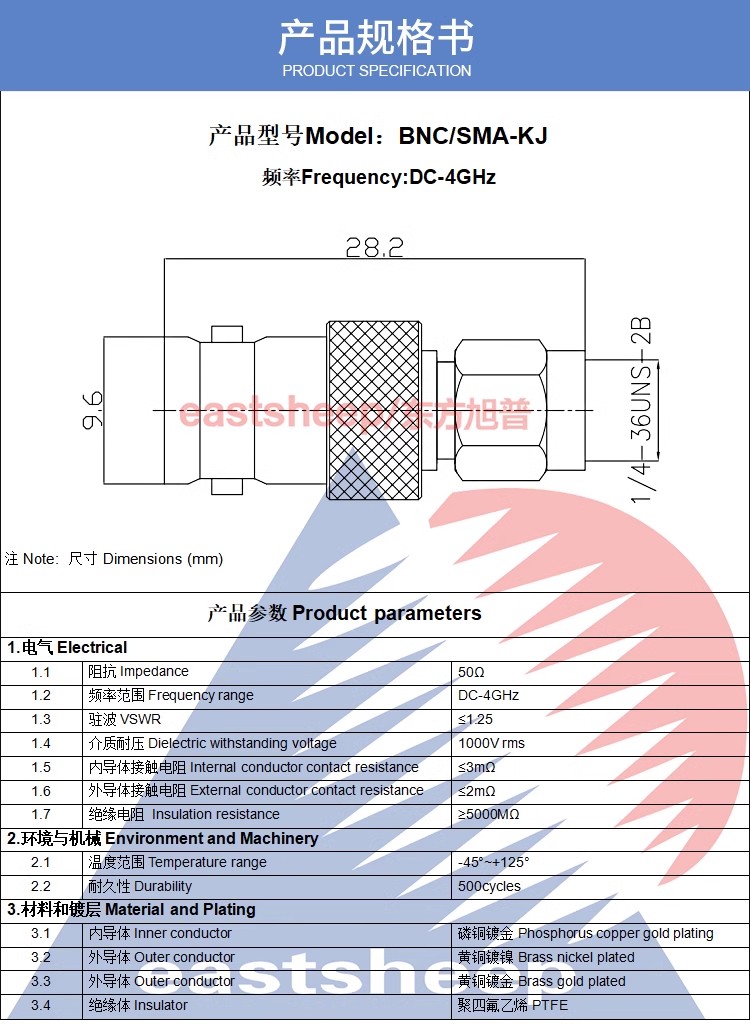

BNC/SMA-KJ |
BNC母—SMA公 |
DC-4G |
≤1.25 |
下載參數 |
|
BNC/SMA-KJG |
BNC母—SMA公 (不銹鋼) |
DC-4G |
≤1.25 |
下載參數 |
|
BNC/SMA-KJG-1 |
BNC母—SMA公 (不銹鋼) |
DC-18G |
≤1.2 |
下載參數 |
